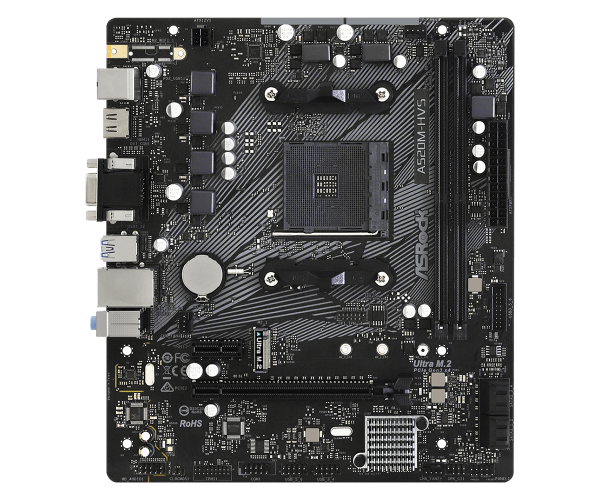

MB AM4 ASRock A520M-HVS 90-MXBE60-A0UAYZ
Šifra: 25360
- Proizvod iz grupe: MATIČNE PLOČE
- Proizvođač: Asrock
- Dostupna količina: 10
Maloprodajna cena:
7.350,00 rsd.
WebCena:
6.737,00 rsd.
Popust:
613,00 rsd.
| Proizvođač | ASRock |
| Tip | Matična ploča |
| Model | H510M-HDV R2.0 |
| Procesorsko ležište (socket) | AMD® AM4 |
| Procesor | AMD® A520 |
| Tip memorije | 2x DDR4 |
| Podržane memorije | 2.133MHz, 2.400MHz, 2.667MHz, 2.933MHz, 3.200MHz, 3.466Mhz (O.C.), 3.600Mhz (O.C.), 3.733Mhz (O.C.), 3.800Mhz (O.C.), 3.866Mhz (O.C.), 4.000Mhz (O.C.), 4.133Mhz (O.C.), 4.200Mhz (O.C.), 4.266Mhz (O.C.), 4.333Mhz (O.C.), 4.400Mhz (O.C.), 4.466Mhz (O.C.), 4.533Mhz (O.C.), 4.600Mhz (O.C.), 4.666Mhz (O.C.), 4.733Mhz+ (O.C.) |
| Maksimalna ukupna memorija | 64GB |
| Ostale osobine | Podrška za Extreme Memory Profile (XMP) |
| PCI Express x16 slot | 1x PCI Express 3.0 (x16 mode) |
| PCI Express x1 slot | 1x PCI Express 3.0 |
| SATA priključci (ukupno) | 4x SATA III |
| Ostali skladišni interfejs | 1x M.2 |
| RAID | RAID 0, RAID 1, RAID 10 |
| Žična mreža (LAN) | 1x 10/100/1.000Mbps (Gigabit ethernet) Realtek® |
| Broj kanala (Audio) | 8 (7.1) Realtek® |
| Priključci na zadnjem panelu | 1x HDMI, 1x VGA D-sub, 1x PS/2, 4x USB 3.2 (Tip A) Gen1, 2x USB 2.0, 1x RJ-45 (LAN), 3x 3.5mm |
| Unutrašnji priključci | 1 x 24 pin Main Power connector, 1x 4 pin 12V Power Connector, 1x USB 3.2 (podrška za 2 USB 3.2 Gen 1 porta), 2x USB 2.0 (podrška za 4 USB 2.0 porta), 1x Front panel audio, 1 x Chassis Intrusion and Speaker Header, 1 x COM Port header, 1 x SPI TPM header, 1x CPU Fan Connector (4-pin), 2x Chassis Fan connectors |
| Format | microATX |
| Dimenzije | 230mm x 201mm |
| Prava potrošača: | Zakonska saobraznost 2 godine |
| EAN: | 4710483932311 |
- CPU- Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 and 5000 G-Series Desktop Processors*
- 6 Power Phase design*Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G. - Chipset- AMD A520
- Memory- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Vermeer) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- Max. capacity of system memory: 64GB**
- Supports Extreme Memory Profile (XMP) memory modules
- 15μ Gold Contact in DIMM Slots - BIOS- 128Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment - Graphics- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
- DirectX 12, Pixel Shader 5.0
- Shared memory default 2GB. Max Shared memory supports up to 16GB.**
- Dual graphics output: support D-Sub and HDMI ports by independent display controllers
- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
- Supports HDR (High Dynamic Range) with HDMI 2.1
- Supports HDCP 2.3 with HDMI 2.1 Port
- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
- Supports Microsoft® PlayReady*Actual support may vary by CPU
**The Max shared memory 16GB requires 32GB system memory installed. - Audio- 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
- Supports Surge Protection - LAN- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111H
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE - Slots- 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
- 1 x PCI Express 3.0 x1 Slot*Supports NVMe SSD as boot disks - StorageCPU:
- 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
Chipset:
- 4 x SATA3 6.0 Gb/s Connectors*Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit - RAID- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Connector- 1 x SPI TPM Header
- 1 x COM Port Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**
- 1 x 24 pin ATX Power Connector
- 1 x 4 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**The Chassis Fan supports the water cooler fan of maximum 1A (12W) fan power.

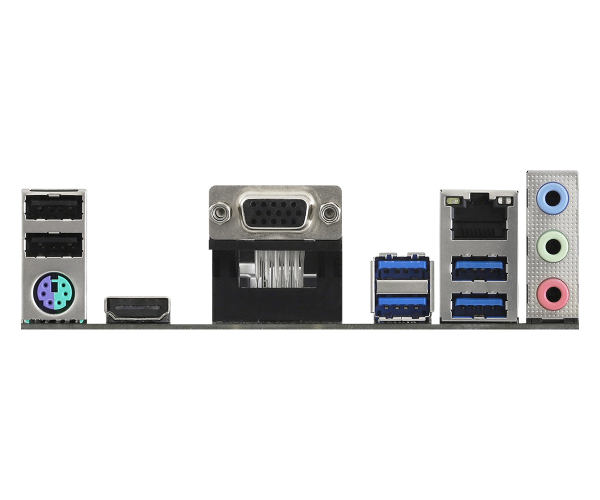

CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use. - Rear Panel I/O- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x HDMI Port
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
